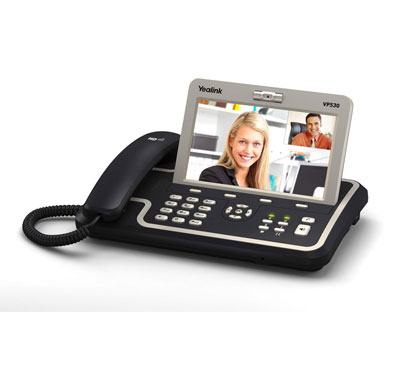

VP530

Descripción del producto

TI DaVinci dual-core chipset, 2M CMOS camera

7” 800×480 digital LCD, Touch screen

HD Voice, full-duplex speakerphone

4 VoIP accounts, 3-way video conferencing

BLF, Intercom, 18 one-touch soft DSS keys

Total directory solution

Door phone application

Video Features

 Video codec: H.264 and H.263

 Image codec: JPEG, GIF, PNG, BMP

 Video capacity: up to D1 (720×480)@30fps

 Video call format: CIF/QCIF

 Bandwidth selection: 128kbps~1Mbps

 Frame rate selection: 10~30fps

 Adaptive bandwidth adjustment

 I-frame adjustable

 Picture-in-Picture (PIP)

 Full screen for remote side

 Video control of local side

 Door phone application

 Audio Features

 HD voice: HD codec, HD handset, HD speaker

 Wideband codec: G.722

 Narrowband codec: G.711(A/μ), G.723.1, G.729AB

 DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO

 Full-duplex hands-free speakerphone with AEC

 Voice activity detection

 Comfort noise generation

 Adaptive jitter buffers

 Packet loss concealment

 IP-PBX and BroadSoft Features

 Busy lamp field (BLF), BLF list

 Message waiting indicator (MWI)

 Intercom, Music on hold

 Call park, Call pickup

 Anonymous call, Anonymous call rejection

 DND & forward synchronization

 Dial Plan, Dial-now

 Phone Features

 4 VoIP accounts, Video/Voice call

 18 one-touch soft DSS keys, Speed dial

 Dial/answer call type selection (video or voice)

 Call forward, Call waiting, Call transfer, Call hold

 Mute, Redial, Auto answer

 DND, Caller ID display, Call history

Voice mail, Local 3-way audio conference

 Direct IP call without SIP proxy

 Phonebook with contact picture,

 Group manager, Black list

 XML/LDAP remote phonebook

 New message and missed call notification

 Volume control, Ring tone selection

 Wallpaper

 Set date time manually or automatically

 National language selection

 Icon-driven menu

 Network and Security

 SIP v1 (RFC2543), v2 (RFC3261)

 NAT transverse: STUN mode

 Proxy mode and peer-to-peer SIP link mode

 IP assignment: static/DHCP/PPPoE

 HTTP/HTTPS web server

 Time and date synchronization using SNTP

 UDP/TCP/DNS-SRV(RFC 3263)

 QoS: 802.1p/Q tagging (VLAN),Layer 3 ToS, and DSCP

 SRTP for voice and video

 Transport Layer Security (TLS)

 HTTPS certificate manager

 AES encryption for configuration file

 Digest authentication using MD5/MD5-sess

 Management

 Configuration: browser/phone/auto-provision

 Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy

 Auto-provision with PnP

 TR069 Protocol optional

 BroadSoft device management

 Zero-sp-touch

 Reset to factory, Reboot

 Package tracing export, System log

 Physical Features

 TI DaVinci dual-core chipset, Resistive touch screen

 7" digital TFT-LCD with 800×480 pixels resolution

 Rotatable CMOS sensor camera with 2M pixels

128MB flash and 256MB DDR2 memory

 27 keys including 4 soft keys

 6 feature keys: Mute/Camera/Phonebook/ Transfer/Redial/Hands-free

 2xLEDs for power and status indication

 2xRJ45 Ethernet 10/100M ports

 1xUSB2.0 port, 1xSD card slot

 2.5mm headset port

 Power adapter: AC 100~240V input and DC 5V/3A output

 Power over Ethernet (PoE) optional: IEEE 802.3af, Class 0

 Power consumption: 4~10W

 Net weight: 1.2Kg

 Dimension: 286x89x45mm

 Operating humidity: 10~95%

 Storage temperature: up to 60°C
