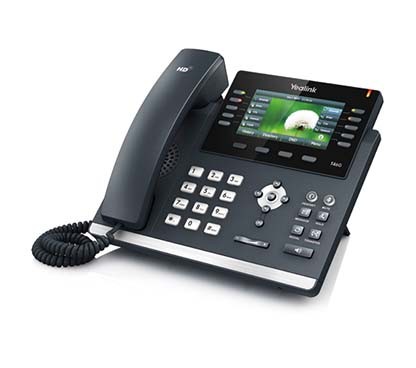

SIP-T46G

Descripción del producto

Yealink SIP-T46G 4.3 inch 480 x 272 display a color, 16 SIP accounts, 3-way conferences, 10 multifunctional line keys, red gigab

Inyector no incluído
No incluye adaptador de corriente o fuente de alimentación: si no se va a alimentar por PoE debe adquirirse a parte la referencia PSUT3XG Adaptador de corriente para telefonos SIP-T46G (5V 2A)

NOTA: A partir de la version de firmware 73, se incluyen las siguientes funcionalidades y mejoras:

1)    Incremento del nº de lineas en la serie SIP-T4X

2)    Proteccion de configuracion personalizada con autoprovisioning

3)    RTCP-XR y VQ-RTCPXR

4)    Capturas de pantalla

5)    Exportar/importar archivos de configuracion locales

6)    Autenticación SIP para XSI (Broadsoft)

7)    Hybrid Key System (Broadsoft)

8)    Añadido soporte para que el usuario pueda seleccionar tonos de llamada diferenciados, en cada cuenta registrada en el teléfono.

9)    Encriptación de archivos de configuración.

Yealink SIP phones Relese Note of Version 73

The SIP-T46G is Yealink latest revolutionary IP Phone for executive users and busy professionals. New designs appears the commerce, with highresolution TFT color display, delivering a rich visual experience. Yealink Optima HD technology enables rich, clear, life-like voice communications.
Supports Gigabit Ethernet, a variety of device connections, including EHS headset and USB. With programmable keys, the IP Phone supports vast
productivity-enhancing features.

Features
Revolutionarily new design
Yealink Optima HD voice
Dual-port Gigabit Ethernet
4.3″ 480 x 272-pixel color display with backlight
Built-in a USB port, support Bluetooth headset (Through USB Dongle)
Up to 16 SIP accounts
Paper label free design
PoE support
Headset, EHS support
Supports expansion modules
Stand with 2 adjustable angles
Wall mountable

Audio Features
HD voice: HD handset, HD speaker
Codecs: G.722, G.711(A/μ), G.723, G.729AB, G.726, GSM
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
16 VoIP accounts
Call hold, Mute, DND
One-touch speed dial, Hotline
Call forward, Call waiting, Call transfer
Group listening, SMS, Emergency cal
Redial, Call return, Auto answer
Call history: dialed/received/missed/forwarded
3-way confernecing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial Plan, XML Browser, Action URL

Directory
Loal phonebook up to 1000 entries
Broadsoft Contacts: Custom/Enterprise/Personal/Common/Search/Speed Dial
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export

IP-PBX and BroadSoft Features
Busy lamp field (BLF), BLF list
Bridged line apperance(BLA)/SCA
Anonymous call, Anonymous call rejection
DND & forward synchronization
BroadWorks Anywhere
N-Way Calling, Remote Office
Network Call Logs – Basic
Broadsoft call center features
Message waiting indicator (MWI)
Voice mail，Call park, Call pickup
Intercom, paging, Music on hold
Call completion, Call recording

Display and Indicator
4.3″ 480 x 272-pixel color display with backlight
16 bit depth color
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Wallpaper
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number and photo

Feature keys
10 line keys with LED
10 line keys can be programmed up to 27 various
features (3-page view)
7 features keys: Message, Headset, Hold, Mute,
Transfer, Redial, Hands-free speakerphone
4 context-sensitive “soft” keys
6 navigation keys
2 volume control keys
Illuminated mute key
Illuminated headset key
Illuminated hands-free speakerphone key

Other Physical Features
Stand with 2 adjustable angles
Wall mountable
Power consumption (PSU): 1.8W-5.4W
Dimension(W*D*H*T):
244mm*213mm*185mm*54mm
Operating humidity: 10~95%
Storage temperature: -10~50°C

Management
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
Auto-provision with PnP
BroadSoft device management
Zero-sp-touch, TR-069, SNMP
Provisioning server redundancy supported
Phone lock for personal privacy protection
Reset to factory, Reboot
Package tracing export, System log

Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
NAT transverse: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP/PPPoE
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
IPv6

Interface
Dual-port Gigabit Ethernet
Built-in a USB port, support Bluetooth headset
(Through USB Dongle)
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port
1XRJ12 (6P6C) EXT port:
Supports up to 6 Expansion Modules for an attendant console application
Power over Ethernet (IEEE 802.3af), Class 3
