SIP-T38G

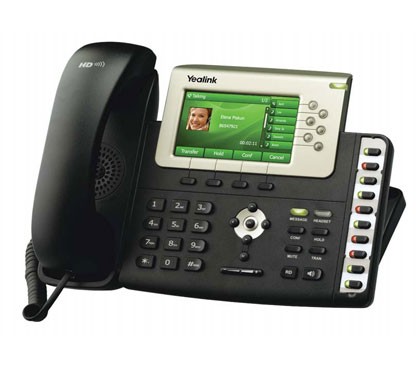

Yealink SIP-T38G dual-port Gigabit Ethernet and a 4.3? TFT Color Display phone

SKU: SIP-T38G Categoría:

Descripción del producto

NOTA: A partir de la version de firmware 73, se incluyen las siguientes funcionalidades y mejoras:



1)    Incremento del nº de lineas en la serie SIP-T4X

2)    Proteccion de configuracion personalizada con autoprovisioning

3)    RTCP-XR y VQ-RTCPXR

4)    Capturas de pantalla

5)    Exportar/importar archivos de configuracion locales

6)    Autenticación SIP para XSI (Broadsoft)

7)    Hybrid Key System (Broadsoft)

8)    Añadido soporte para que el usuario pueda seleccionar tonos de llamada diferenciados, en cada cuenta registrada en el teléfono.

9)    Encriptación de archivos de configuración.

Puede comprobar el resto de novedades y optimizaciones en el siguiente enlace:

Yealink SIP phones Relese Note of Version 73

SIP-T38G IP Phone is Yealink latest innovation for managers with demanding collaborative communication needs. For managers, it is a future-proofing network investment which supports seamless migration to GigE-based network infrastructure. Dual-port Gigabit Ethernet is designed for flexible deployment options and lower cabling expenses. With its high-resolution TFT color display, The T38G IP Phone offers a brilliant depiction of caller’s information, And the user interface was designed for clarity and intuitive operation. Moreover, Equipped with the TI Aries chipset, HD handset, HD speaker and HD codec (G.722), The T38G IP Phone offers an unrivaled,lifelike audio experience

Key Features

  • Dual-port Gigabit Ethernet, Power over Ethernet
  • 4.3” TFT-LCD, 262K colors, Intuitive user interface
  • TI Aries chipset and TI voice engine
  • HD Voice: HD Codec, HD speaker, HD handset
  • 6 VoIP accounts, BLF/BLA, IPV6, OpenVPN
  • Headset, Support Wireless Headset, LCD Expansion module

Phone Features

  • 6 VoIP accounts, Hotline, Emergency call
  • Call hold, Call waiting, Call forward, Call return
  • Call transfer (blind/semi-attended/attended)
  • Caller ID display, Redial, Mute, DND
  • Auto-answer, 3-way conferencing
  • Speed dial, SMS, Voicemail
  • Message Waiting Indication (MWI) LED
  • Tone scheme, Volume control
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Phonebook (1000 entries), Black list
  • Call history: dialed/received/missed/forwarded
  • Menu-driven user interface
  • Localized language and input method
  • Soft keys programmable
  • Supports up to 6 expansion modules(EXP39)
  • Supports Wireless Headset Adapter(EHS36)

Advanced Features

  • XML phonebook search/import
  • LDAP phonebook
  • XML Idle Screen
  • Action URL & Active URI
  • Background Pictures, Screensaver
  • Color Picture Caller-ID
  • Theme, Screen Sleep

IP PBX System Integration

  • Busy lamp field (BLF), BLF list, (BLA)
  • DND & Forward synchronization
  • Intercom, Paging, Music on hold
  • Call park, Call pickup
  • Call recording, Call completion
  • Group listening, Group pickup
  • Anonymous call, Anonymous call rejection
  • Network conference
  • Distinctive ringtone
  • Dial Plan, Dial-now

Codecs and Voice Features

  • Wideband codec: G.722
  • Narrowband codec: G.711μ/A, G.723.1
  • G.726, G.729AB
  • VAD, CNG, AEC, PLC, AJB, AGC
  • Full-duplex speakerphone with AEC

Network Features

  • SIP v1 (RFC2543), v2 (RFC3261)
  • IPV6
  • DNS SRV (RFC3263)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info
  • Proxy mode and peer-to-peer SIP link mode
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/router mode for PC port
  • TFTP/DHCP/PPPoE client
  • Telnet/HTTP/HTTPS server
  • DNS client, NAT/DHCP server
  • Logout

Management

  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • Auto-provision with PnP
  • SNMP V1/2 optional, TR069 optional
  • Configuration: browser/phone/auto-provision
  • Factory configuration customized
  • Trace package and system log export

Security

  • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP
  • Transport Layer Security (TLS)
  • HTTPS (server/client), SRTP (RFC3711)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection
  • Admin/VAR/User 3-level configuration mode

Physical Features

  • TI Aries chipset
  • 4.3” TFT-LCD, 480 x 272 pixel, 262K colors
  • 48 keys including 16 programmable keys
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • 2xRJ45 10/100/1000Mbps Ethernet ports
  • 1XRJ12 (6P6C) EXT port
  • Power adapter: AC 100~240V input and
  • DC 5V/1.2A output
  • Power over Ethernet (IEEE 802.3af)
  • Power consumption: 1.6-2.6W
  • Net weight: 1.05KG
  • Dimension: 273×204x42MM
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C
